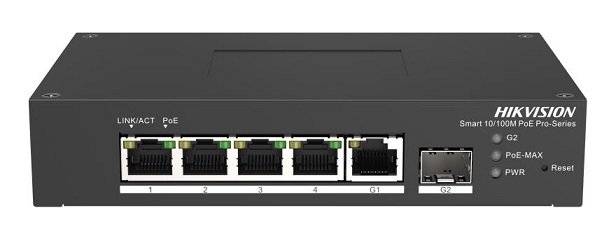

4 Port Fast Ethernet Smart Harsh PoE Switch HIKVISION DS-3T1306P-SI/HS
4 Port Fast Ethernet Smart Harsh PoE Switch HIKVISION DS-3T1306P-SI/HS
– Hỗ trợ 4 cổng 10/100Mbps PoE, 1 cổng Gigabit RJ45, 1 cổng Gigabit quang.
– Chuẩn IEEE 802.3af, IEEE 802.3at cho các cổng PoE.
– Công suất đầu ra tối đa của mỗi cổng PoE là 30W.
– Các tính năng lớp 2: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, v.v.
– Cấp độ bảo vệ IP40 với khả năng bảo vệ chống xâm nhập và độ ẩm.
– Dải nhiệt độ rộng từ -30°C đến 65°C trong môi trường khắc nghiệt.
Mô tả
Thông tin liên hệ:
CÔNG TY TNHH THIẾT KẾ XÂY DỰNG TRƯỜNG THẠNH
Địa chỉ: Số 16/9P, Ấp Xuân Thới Đông 1, Xã Xuân Thới Đông, Huyện Hóc Môn, Tp.HCM.
Showroom: Số 739 Đường Mỹ Hạnh, ấp Tràm Lạc, Xã Mỹ Hạnh Bắc, Huyện Đức Hòa, Long An.
Hotline: 088 824 9959 – 091 800 6239
Email: letruongthanh@hotmail.com
Website: www.truongthanh.vn
Thông số kỹ thuật
Thông số kỹ thuật
| General | |
| Shell | Metal material |
| Net Weight | 0.4 kg |
| Gross Weight | 1.0 kg |
| Dimensions (W × H × D) | 158.00 mm × 101.20 mm × 31.60 mm |
| Operating Temperature | -30 °C to 65 °C (-22 °F to 149 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | Power adapter: 48 V DC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 V DC (working temperature: -30°C to 65°C) |
| Installation Mode | Desk-Mounted,Rail |
| Max. Power Consumption | 65W |
| Power Consumption in Idle | 5W |
| Surge Protection | 6kV |
| Network Parameters | |
| Ports | 4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table | 2 K |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 10.42 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| Software Function | |
| Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| QoS | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP/RSTP/ERPS |
| System Maintenance | Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
– Bảo hành: 24 tháng.
